Best Flex Skatewheel











Home

Back Contact Us

Gravity Applications
Best Flex is a proven Performer for flexible conveyor truck loading and unloading. Ideally suited for packaging, shipping and flexible assembly lines. The optional Support Section is recommended for high impact receiving applications.

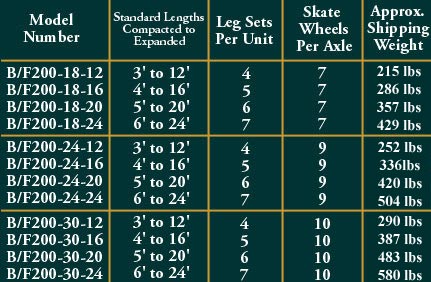

    Best Flex 200

200 lbs capacity per linear foot.

28 3/4" to 41 3/4" adjustable conveyor height

18", 24" and 30" conveyor widths

Available in any length to fit your application

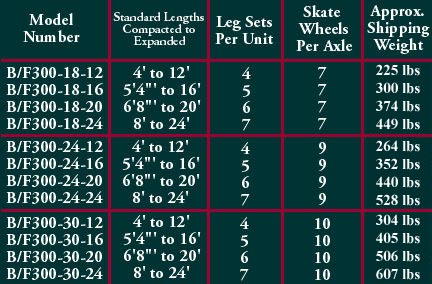

Best Flex 300

300 lbs capacity per linear foot.

Best Flex Ultra

175 lbs capacity per linear foot.



Features:

  • Self Tracking- Cartons follow the twists and turns of the conveyor path without using engineered curves

  • Structural Steel Support Channel- steel spans the entire conveyor width for unequaled strength. You can only get this patented design from BEST

  • Casters with brakes- 5" x 1 1/2" swivel casters roll easily. Caster brakes lock both wheel and swivel simultaneously while the conveyor is in use.

  • Adjustable Height- Simply turn the locking knob to raise and lower the conveyor bed height
  • 1 1/4" Side Plates-Aluminum alloy construction features a ribbed design for added durability. Assembled with bolts and lock nuts.
  • Square Tubing Legs - only BEST offers heavy duty square tubing legs for longer service life.

Options:

  • Package Stop

  • Impact Support Section

  • Axle connect brackets

  • Axle Centers On 3" or 4"

  • 6"x 2" Casters

  • Steel or Polyolefin wheels
